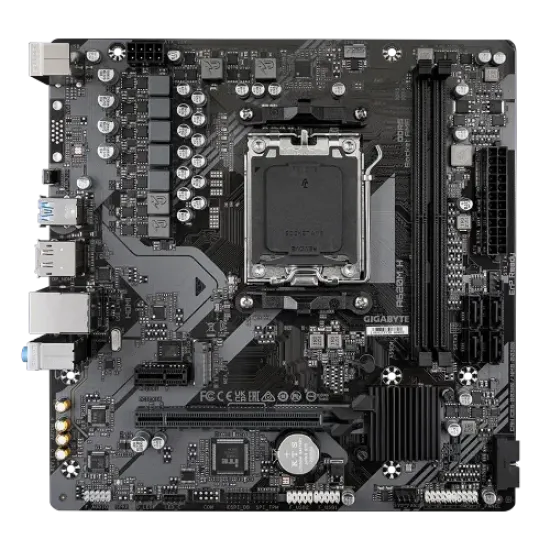

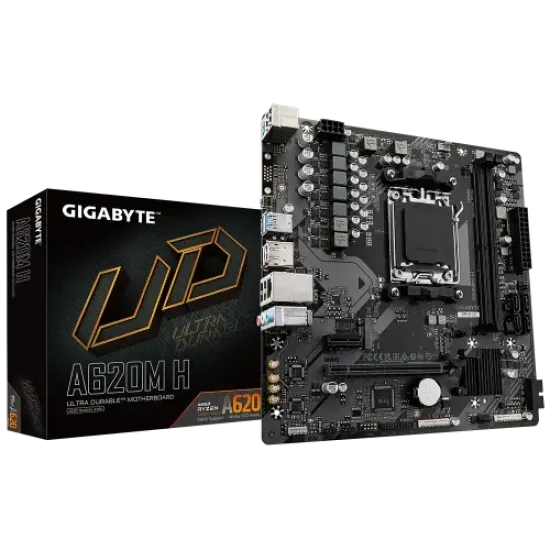

GIGABYTE A620M H AM5 Micro-ATX Motherboard

GIGABYTE A620M H AM5 Micro-ATX Motherboard
-8 %
BASIC INFORMATION
Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset AMD A620
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
EXPANSION SLOTS
PCI 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
MEMORY SPECIFICATION
Type DDR5
Slots 2 x DIMM
Supported Memory 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory supporting up to 96 GB (48 GB single DIMM capacity) of system memory
GRAPHICS SPECIFICATION
Graphics Card supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
CONNECTOR & PARTS
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (S) CPU: 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB 2.0/1.1 port on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (S) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks

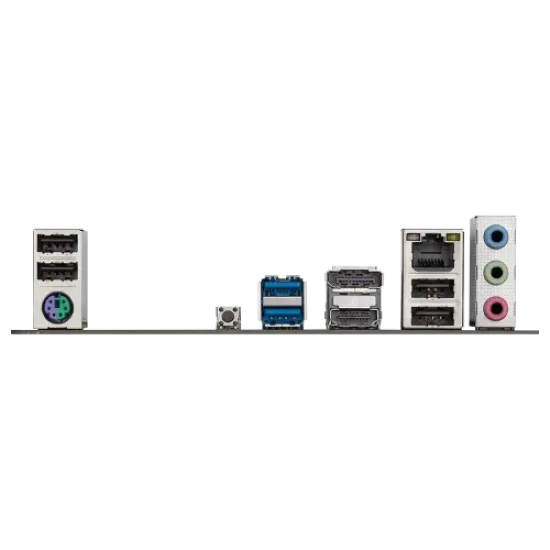

Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
OTHERS
Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
GIGABYTE A620M H AM5 Micro-ATX Motherboard
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Model: A620M H
  • Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
  • Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
  • Graphics Output: 2 x DisplayPort, 1 x HDMI port
  • Features: 1 x DisplayPort, 1 x HDM

Write a review

Note: HTML is not translated!
Bad Good
  • Stock: In Stock
  • Model: A620M H
Gigabyte
190 samples sold
Product Views: 13
Based on 0 reviews. - Write a review
৳10,800.00
৳11,700.00
Ex Tax: ৳10,800.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product









Tags: GIGABYTE A620M H AM5 Micro-ATX Motherboard , A620M H , GIGABYTE
