BASIC INFORMATION | |
Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
Chipset | INTEL B760 |
Form Factor | mATX 200mmx236.16mm |
Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
EXPANSION SLOTS | |
PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
M.2 SOCKET | 1x M.2 |
MEMORY SPECIFICATION | |
Type | DDR5 |
Slots | 2x DIMM |
Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz |
Maximum Memory | 96GB |
GRAPHICS SPECIFICATION | |
Graphics Card | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA |
CONNECTOR & PARTS | |
HDMI | 1x HDMI 1.4 |
USB (S) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
LAN Port (S) | Realtek RTL8111H Gigabit LAN |
Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

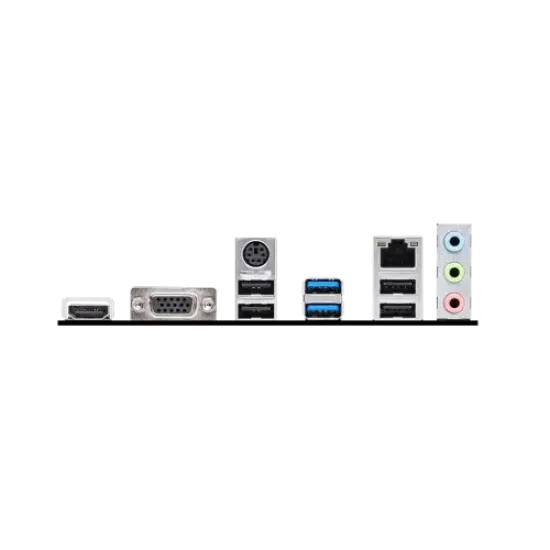

Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
OTHERS | |
Special Features | 1x RGB LED connector(JRGB) |
B760M-E price in Bangladesh | Spark Gateway
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
B760M-E - MSI PRO B760M-E DDR5 m-ATX Motherboard - B760M-E - MSI - MSI PRO B760M-E DDR5 m-ATX Motherboard best product price in bd. [mode] is a high-performance designed for both work and entertainment. In Bangladesh, You can find - MSI PRO B760M-E DDR5 m-ATX Motherboard best product price in bd. [mode] is a high-performance designed for both work and entertainment. In Bangladesh, You can find authorized B760M-E. We have a vas collection of latest product stock to purchase. Order Online Or Visit Spark Gateway Shop to get yours at lowest price. MSI PRO B760M-E DDR5 m-ATX Motherboard comes with
৳13,400.00
৳14,000.00
Ex Tax: ৳13,400.00
