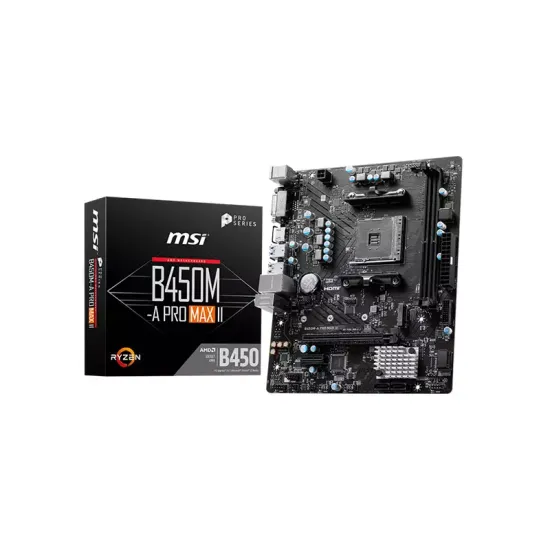

MSI B450M-A PRO MAX II AMD AM4 Motherboard

MSI B450M-A PRO MAX II AMD AM4 Motherboard
MSI B450M-A PRO MAX II AMD AM4 Motherboard
MSI B450M-A PRO MAX II AMD AM4 Motherboard
MSI B450M-A PRO MAX II AMD AM4 Motherboard
-8 %
MSI B450M-A PRO MAX II AMD AM4 Motherboard
MSI B450M-A PRO MAX II AMD AM4 Motherboard
MSI B450M-A PRO MAX II AMD AM4 Motherboard
MSI B450M-A PRO MAX II AMD AM4 Motherboard
BASIC INFORMATION
Supported CPU Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega Graphics desktop processors Socket AM4
Form Factor mATX 200mmx236mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
EXPANSION SLOTS
PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
INTERFACE
DVI 1x DVI
MEMORY SPECIFICATION
Type DDR4
Slots 2
Supported Memory Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
GRAPHICS SPECIFICATION
Graphics Card 1x HDMI Support HDMITM 1.4, maximum resolution of 4K 24Hz 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz
CONNECTOR & PARTS
HDMI 1x HDMI
USB (S) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (S) Realtek 8125 2.5Gbps LAN controller
Supported Storage 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
MANUFACTURE WARRANTY
Warranty 03 Years
MSI B450M-A PRO MAX II AMD AM4 Motherboard
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Model: B450M-A PRO MAX II
  • Supported CPU: Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G-Series Processors
  • Supported RAM: 2x DDR4, up to 4133 (OC) MHz
  • Graphics Output: 1 x HDMI, 1x DVI
  • Features: 1 x M.2 Slot, Realtek 8125 2.5Gbps LAN
