| BASIC INFORMATION | |
| Supported CPU | Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package L3 cache varies with CPU |
| Chipset | Intel H81 Express Chipset |
| BIOS | 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| EXPANSION SLOTS | |
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
| MEMORY SPECIFICATION | |
| Type | DDR3 |
| Slots | 2 x 1.5V DIMM sockets |
| Supported Memory | Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 16 GB |
| GRAPHICS SPECIFICATION | |
| Graphics Card | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz * Support for HDMI 1.4a version. |
| Max Shared Memory | 1 GB |
| CONNECTOR & PARTS | |
| HDMI | 1 x HDMI |
| D-Sub (s) | 1 x D-Sub |

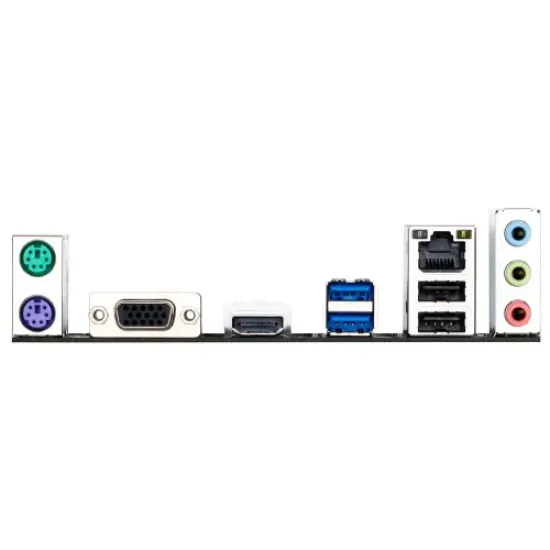

| USB (S) | Chipset: 2 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (S) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) 2 x SATA 3Gb/s connectors (SATA2 2/3) |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
| OTHERS | |
| Special Features | Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Smart TimeLock Smart Recovery 2 Support for ON/OFF Charge |
| MANUFACTURE WARRANTY | |
| Warranty | 3 Years |
GA-H81M-H price in Bangladesh | Spark Gateway
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
GA-H81M-H - GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard - GA-H81M-H - GIGABYTE - GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard best product price in bd. [mode] is a high-performance designed for both work and entertainment. - GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard best product price in bd. [mode] is a high-performance designed for both work and entertainment. In Bangladesh, You can find authorized GA-H81M-H. We have a vas collection of latest product stock to purchase. Order Online Or Visit Spark Gateway Shop to get yours at lowest price. GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard comes with 3 Years
৳9,000.00
৳10,500.00
Ex Tax: ৳9,000.00
