B860M DS3H WIFI6E price in Bangladesh | Spark Gateway

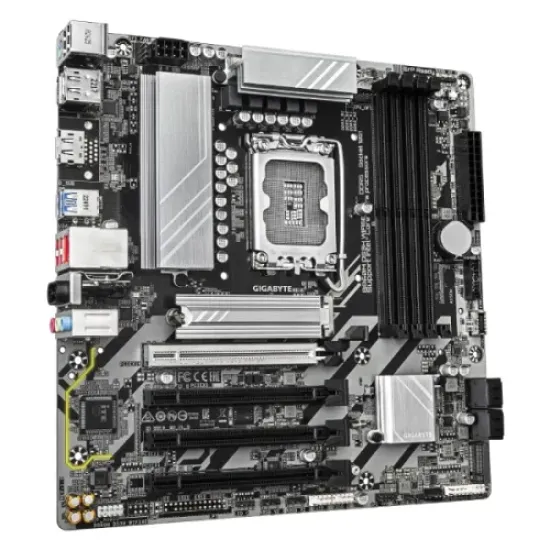

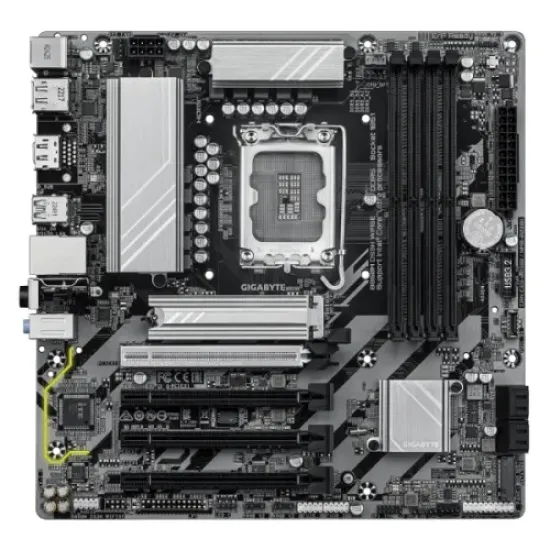

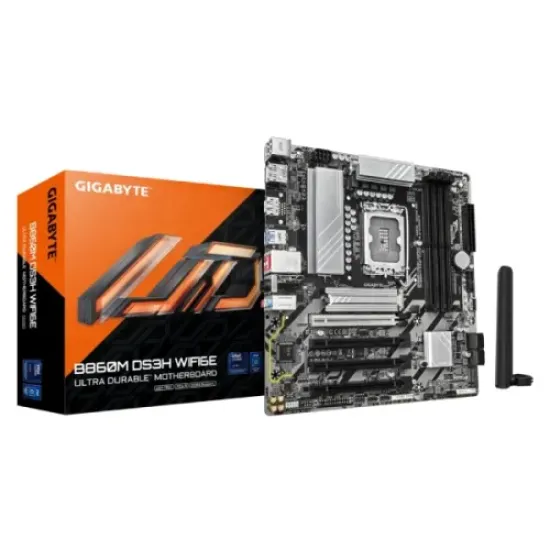

Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard best product price in bd
Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard best product price in bd
Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard best product price in bd
Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard best product price in bd
-11 %
Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard best product price in bd
Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard best product price in bd
Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard best product price in bd
Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard best product price in bd
BASIC INFORMATION
Supported CPU LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset Intel B860 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Raid Controller RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
EXPANSION SLOTS
PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
M.2 SOCKET CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
MEMORY SPECIFICATION
Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory
GRAPHICS SPECIFICATION
Graphics Card Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
CONNECTOR & PARTS
HDMI 1 x HDMI port
Display Port (s) 2 x DisplayPort
USB (S) Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (S) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication Moduler Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
OTHERS
Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
B860M DS3H WIFI6E price in Bangladesh | Spark Gateway
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
B860M DS3H WIFI6E - Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard - B860M DS3H WIFI6E - GIGABYTE - Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard best product price in bd. [mode] is a high-performance designed for both - Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard best product price in bd. [mode] is a high-performance designed for both work and entertainment. In Bangladesh, You can find authorized B860M DS3H WIFI6E. We have a vas collection of latest product stock to purchase. Order Online Or Visit Spark Gateway Shop to get yours at lowest price. Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard comes with

Write a review

Note: HTML is not translated!
Bad Good
  • Stock: In Stock
  • Model: B860M DS3H WIFI6E
Gigabyte
190 samples sold
Product Views: 37
Based on 0 reviews. - Write a review
৳23,900.00
৳27,000.00
Ex Tax: ৳23,900.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product









Tags: Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard , B860M DS3H WIFI6E , GIGABYTE , Gigabyte
