BASIC INFORMATION | |
Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Chipset | Intel B760 Chipset |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
Audio | 3 x Audio jacks |
Raid Controller | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
EXPANSION SLOTS | |
PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
MEMORY SPECIFICATION | |
Type | DDR4 |
Slots | 2 x DIMM |
Supported Memory | DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
Maximum Memory | Max. 64GB |
GRAPHICS SPECIFICATION | |
Graphics Card | 1 x VGA port 1 x HDMI port |
CONNECTIVITY | |
HDMI | 1 x HDMI port |
CONNECTOR & PARTS | |

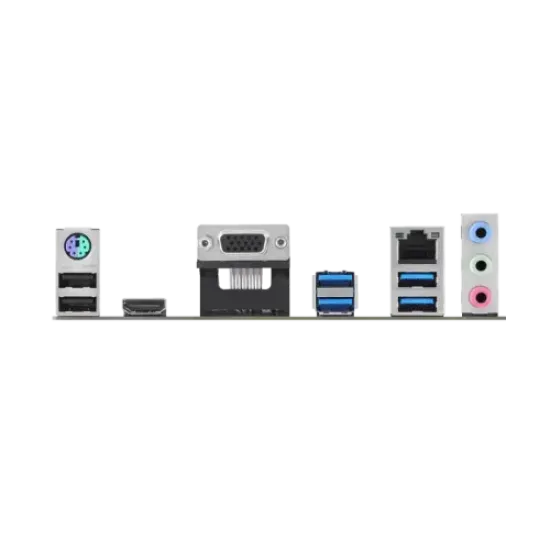

USB (S) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 por |
VGA (s) | 1 x VGA port |
LAN Port (S) | 1 x Realtek 2.5Gb Ethernet |
Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
OTHERS | |
Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers |
Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
PRIME B760M-K D4 price in Bangladesh | Spark Gateway
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
PRIME B760M-K D4 - Asus PRIME B760M-K D4 mATX Motherboard - PRIME B760M-K D4 - ASUS - Asus PRIME B760M-K D4 mATX Motherboard best product price in bd. [mode] is a high-performance designed for both work and entertainment. In Bangladesh, Yo - Asus PRIME B760M-K D4 mATX Motherboard best product price in bd. [mode] is a high-performance designed for both work and entertainment. In Bangladesh, You can find authorized PRIME B760M-K D4. We have a vas collection of latest product stock to purchase. Order Online Or Visit Spark Gateway Shop to get yours at lowest price. Asus PRIME B760M-K D4 mATX Motherboard comes with
৳14,400.00
৳16,000.00
Ex Tax: ৳14,400.00
