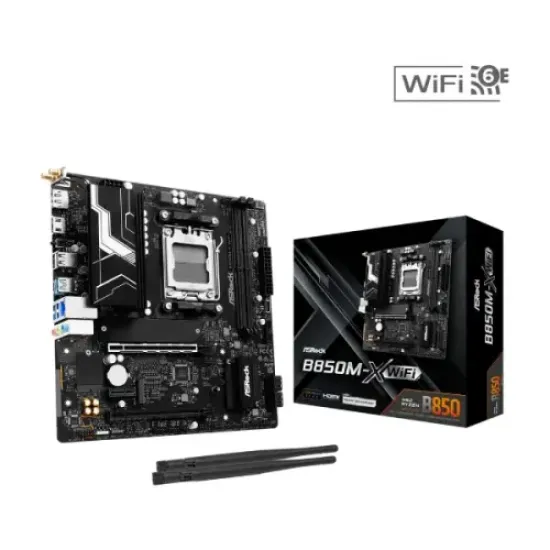

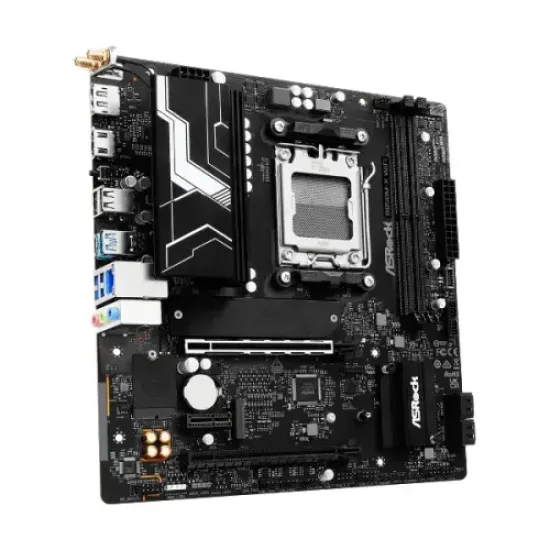

ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard

ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard
-10 %
BASIC INFORMATION
Supported CPU Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset AMD B850
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
EXPANSION SLOTS
PCI CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
M.2 SOCKET CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors
MEMORY SPECIFICATION
Type Dual Channel DDR5 Memory Technology
Slots 2 x DDR5 DIMM Slots
Supported Memory Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules
Maximum Memory 128GB
GRAPHICS SPECIFICATION
Graphics Card Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
CONNECTOR & PARTS
HDMI 1 x HDMI 2.1
Display Port (s) 1 x DisplayPort 1.4
USB (S) CPU: - 3 x USB 3.2 Gen1 Type-A (Rear) - 1 x USB 2.0 (Rear (USB_2)) Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 2 x USB 3.2 Gen1 Type-A (Front) - 5 x USB 2.0 (1 Rear (USB_1), 4 Front)
LAN Port (S) - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Wireless Communication Moduler - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 - Supports MU-MIMO
Supported Storage CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors
RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio 1 x Front Panel Audio Connector
Internal I/O Ports Rear Panel I/O: - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
OTHERS
Special Features Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase, Dr.MOS for VCore Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
MANUFACTURE WARRANTY
Warranty 3 Years
ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Model: B850M-X WiFi
  • Supported CPU: Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, Up to 8000+(OC), Max 128GB
  • Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
  • Features: 2.5G LAN, 802.11axe Wi-Fi 6E Module, Bluetooth 5.2
