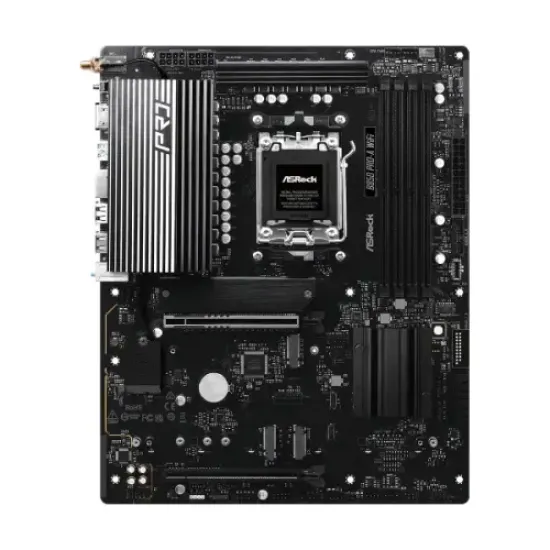

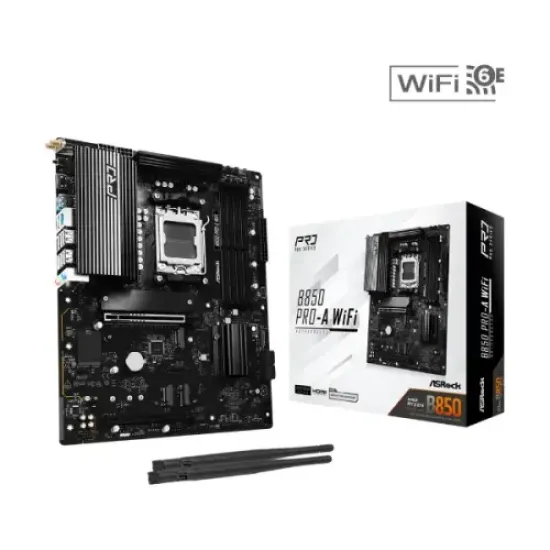

Name: ASRock B850 Pro-A WiFi AM5 DDR5 ATX Motherboard
Brand: ASRock
Price: 27500.00 BDT
Availability: InStock

ASRock B850 Pro-A WiFi AM5 DDR5 ATX Motherboard

-10 %

Specifications

BASIC INFORMATION
Supported CPU	Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset	AMD B850
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 8 Layer PCB
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
EXPANSION SLOTS
PCI	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks
M.2 SOCKET	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors
MEMORY SPECIFICATION
Type	Dual Channel DDR5 Memory Technology
Slots	4 x DDR5 DIMM Slots
Supported Memory	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory	256GB
GRAPHICS SPECIFICATION
Graphics Card	Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a)
CONNECTOR & PARTS
HDMI	1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
USB (S)	CPU: 1 x USB 3.2 Gen2 Type-C (Rear) 1 x USB 3.2 Gen1 Type-C (Rear) 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)) Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front) 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front) 9 x USB 2.0 (6 Rear, 3 Front) All USB ports support ESD Protection
LAN Port (S)	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Wireless Communication Moduler	- 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 - Supports MU-MIMO The Wi-Fi 6E module is supported by Microsoft Windows 11 only. There is no driver available for Windows 10. The availability of the 6GHz band will depend on the different regulatory status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality.
Supported Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled. If SATA3_1 or SATA3_2 is occupied, M2_4 will downgrade to Gen3x2 mode.
RAID	Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio	1 x Front Panel Audio Connector

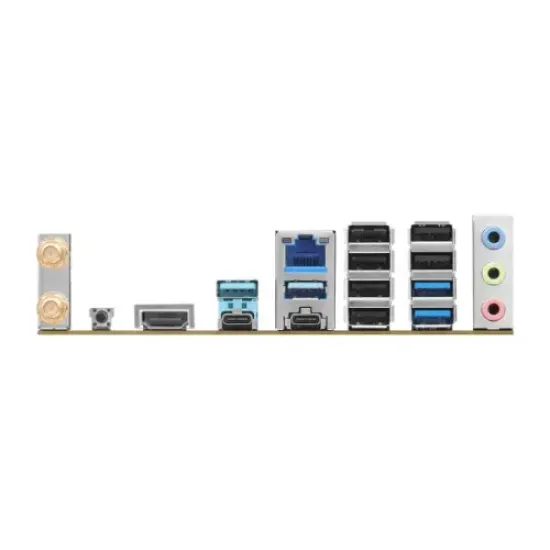

Internal I/O Ports	Rear Panel I/O: - 2 x Antenna Ports - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 1 x USB 3.2 Gen1 Type-C Port (DP-alt mode supports DP1.4a) - 4 x USB 3.2 Gen1 Type-A Ports - 6 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
OTHERS
Special Features	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
MANUFACTURE WARRANTY
Warranty	3 Years

ASRock B850 Pro-A WiFi AM5 DDR5 ATX Motherboard

This product qualifies for free shipping

This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.

Description
Reviews

Model: B850 Pro-A WiFi
Supported CPU: Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Up to 8000+(OC), Max 256GB
Graphics Output: 1x HDMI 2.1, 1x USB 3.2, Support DP 1.4 HBR3 and max
Features: 2.5G LAN, 802.11axe Wi-Fi 6E Module, Bluetooth 5.2

Stock: In Stock
Model: B850 Pro-A WiFi

ASRock

190 samples sold

Product Views: 22

Based on 0 reviews. - Write a review

৳27,500.00

৳30,500.00

Ex Tax: ৳27,500.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Tags: ASRock B850 Pro-A WiFi AM5 DDR5 ATX Motherboard
